Optimal Fit Fiberglass Filter Cloth 99.9% High Efficiency 60Pa/6mmAq Pressure Loss

Product Categories
Daitto Filtration Group Company
Contact Now

Optimal Fit Fiberglass Filter Cloth 99.9% High Efficiency 60Pa/6mmAq Pressure Loss

Brand Name : DAITTO

Model Number : PE Filter Fabric Tops Priority Among Synthetic Fabric Cloths

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000m per week

Delivery Time : within 20 days

Packaging Details : standard export package

Material : polyester, polypropylene and polyamide

Fibers : polyester, polypropylene, polyamide, PVDF, Saran, PTFE

Diameters : from 500 to 3000 mm

usage : Discs & cloths for vacuum & pressure filters

installation : Easy installation and optimal fit

supply : • NFM Belt Presses • Andritz Belt Press • Eimco Belt Press • Komline Sanderson Belt Press • Enviroclear Belt Press • Phoenix Belt Press • Frontier Belt Press

Contact Now

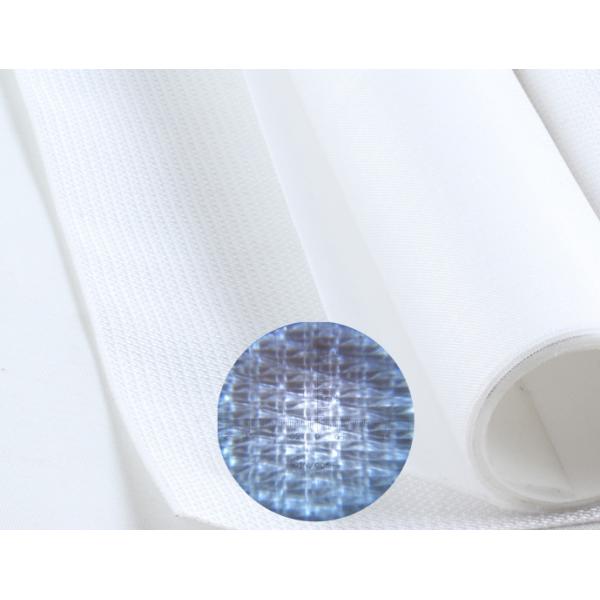

Glass Fiber Filter Cloth

Glass fiber is a material consisting of numerous extremely fine fibers of glass.
Glass fiber has roughly comparable mechanical properties to other fibers such as polymers and carbon fiber. Glass fibers are therefore used as a reinforcing agent for many polymer products; to form
a very strong and relatively lightweight fiber-reinforced polymer (FRP) composite material called glass-reinforced plastic (GRP), also popularly known as "fiberglass". This structural material product contains little air, is more dense than glass wool, and is an especially good thermal insulator.
Description of product DA-GL
Fiber 100%GL
Substrates 100%GL
Square weight 850g/m2
Thickness 1.1mm
Density 0.78g/cm3
Air permeability 100L/dm2.min
Breaking Strength-lengthways ≥1500 N/5cm
Breaking Strength-crosswise ≥1500 N/5cm
elongation@200N/5cm-lengthways ＜1%
elongation@200N/5cm-crosswise ＜1%
Heat shrinkage@150degC,90min 2%
Bursting strength ＞300 N/cm2
Continuous temperature 240℃
Instantaneous temperature 580℃
Post-processing Heat-setting

Glass Fiber Filter Bag

Raw Material DAITTO
Efficient 99.9%
Size OEM Welcomed
Filter Rating 1μm,2μm,5μm,10μm,15μm,25μm,etc
Ring Model SS316,SS304,Felt,Zinc Coated
Features High temperature, stable,harmless,acid proof,alkali-resisting,etc
Pressure Loss 60pa/6mmAq
Lifetime 5years
Warranty 12months
Working Time 7x24hours
Dust Type Dry, Fibrous
Max.temperature 180℃
Treatment Firing pressure,anti-static,anti-water,oil proof, self-cleaning,PTFE filmed,etc
Processing Way Sewing/weld
Application Steel making,chemical, iron industry,etc
How to choose the right filter bag for your company?
Cause every filter has its own characteristics and parameters, so when we choose filter material for dust collector filter bag, we have to know the following parameters:
(1) Working temperature ( Continuous working tem / Short-term working tem)
(2) Dust diameter
(3) Gas’ chemical properties
(4) Working pressure
(5) Emission concentration
